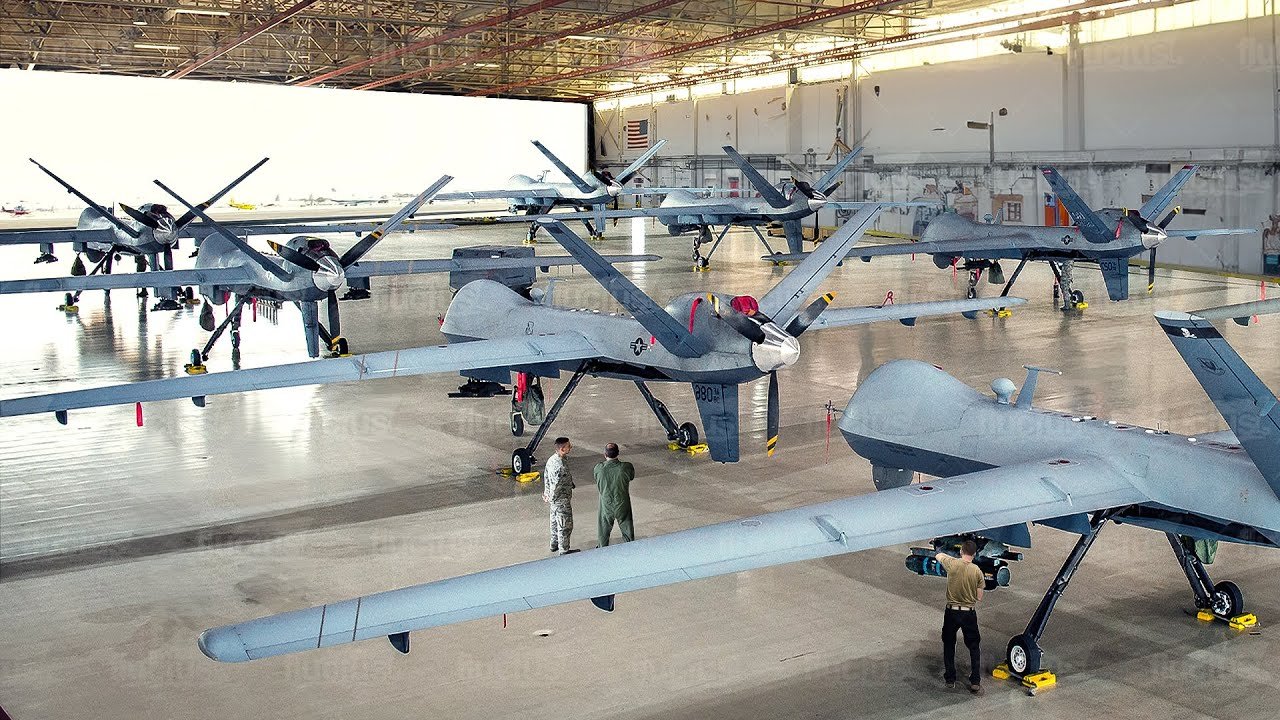

Today, we’re diving into the world of drones with a special feature on the MQ-9 Reaper Drone. Known as the most feared drone ever created, this powerful unmanned aerial vehicle is used by the U.S. Air Force for various military and surveillance operations. Fluctus, a website and YouTube channel dedicated to all things geeky, brings you this fascinating video that delves into the history, capabilities, and assembly process of the MQ-9 Reaper. From its predecessors like the MQ-1 Predator to the challenges of operating in international airspace, this article covers all you need to know about this remarkable piece of technology. So sit back, relax, and get ready to explore the world of the MQ-9 Reaper Drone.
Overview of Combat Drones
Introduction to combat drones
combat drones, also known as unmanned combat aerial vehicles (UCAVs), are unmanned aircraft that are used for conducting drone strikes and providing battlefield intelligence. These drones do not have onboard human pilots, which allows them to be lighter and smaller compared to manned aircraft. Over the years, combat drones have developed significantly, and their true potential is still being explored. The development of UCAVs dates back to the 1930s, but it was not until the 1990s that the MQ-1 Predator, the first drone capable of carrying missiles, was discovered by the U.S Air Force.
Evolution of unmanned combat aerial vehicles
During World War II, the U.S Air Force attempted to convert war-weary bombers into aerial weapons that could target both sea and land-based targets. This led to the development of powerful target drones with advanced technology, larger wings, and autonomous capabilities. However, it was in the 1990s that the USAF discovered the MQ-1 Predator, a game-changer in the field of combat drones. This drone was capable of carrying missiles such as the AGM-114 Hellfire and revolutionized the way drone attacks were conducted.
The development of the MQ-1 Predator
The MQ-1 Predator, developed by General Atomics, provided the U.S Air Force with the capability to conduct drone attacks for almost three decades. This drone played a crucial role in various military and surveillance operations beyond national boundaries. However, as technology evolved, a need for a larger, heavier, and more capable aircraft arose, leading to the development of the MQ-9 Reaper.
Introduction of the MQ-9 Reaper
The MQ-9 Reaper, also developed by General Atomics, is a larger and more advanced version of the MQ-1 Predator. It is used by the U.S Air Force for various military and surveillance operations. The Reaper is equipped with enhanced capabilities, allowing it to carry a larger payload and operate over longer ranges compared to its predecessor.
The Capabilities of the MQ-9 Reaper
Size and weight
The MQ-9 Reaper is a 36-foot long aircraft with a wingspan of 65 feet. It stands just over 12 feet high, giving it a flat profile that reduces its radar signature and helps it stay undetected during missions. The Reaper is capable of carrying up to 3,800 pounds of ordnance, allowing it to strike targets across a range of more than 1,200 miles.
Armament and weaponry
The typical armament of the MQ-9 Reaper includes four AGM-114 Hellfire laser-guided air-to-ground missiles and two GBU-12 Paveway 2 laser-guided bombs. It can also be equipped with other weapon systems, such as the AGM-176 Griffin and the GBU-38 JDAM. In the future, the USAF plans to load it with the GBU-39 SDB, increasing its payload capacity and its ability to destroy targets on the battlefield.
Assembly and maintenance
Assembling an MQ-9 Reaper requires skilled technicians and attention to detail. The main structure of the drone, the fuselage, is set up inside a hangar before initiating the assembly process. The crew assembles the wing and tail section separately, attaching the main wing structure, ailerons, flaps, stabilizers, propeller, and rudder. Once assembled, the drone can be loaded with weaponry to conduct missions. Regular maintenance is crucial to ensure the drone’s operational readiness, and a post-flight inspection is conducted after every mission.
Control and piloting
The MQ-9 Reaper is controlled remotely from a mobile Ground Control Station (GCS), which can be set up anywhere in the world. It requires two operators, a pilot, and a sensor operator, who sit next to each other in the GCS. The pilot is responsible for maneuvering the aircraft, monitoring the airspace, and using control sticks to navigate the drone. The sensor operator manages the Multi-Spectral Targeting System (MTS), which incorporates various sensors, cameras, and radar to identify and track targets.
This image is property of i.ytimg.com.
Deploying the MQ-9 Reaper
Risks of drone deployment
Deploying a drone like the MQ-9 Reaper to unknown territories always involves a risk of interception by other aircraft. Interception incidents, such as the unsafe intercept by Russian SU-27 aircraft over the Black Sea in 2023, highlight the potential risks associated with patrolling a drone in international airspace.
Interception incidents
On March 13, 2023, two Russian SU-27 aircraft conducted an unsafe and unprofessional intercept with a U.S Air Force unmanned MQ-9 Reaper operating within international airspace over the Black Sea. This incident resulted in the loss of the Reaper as it was struck by one of the intercepting aircraft, causing it to crash into the Black Sea.
Assembly process overview
Assembling an MQ-9 Reaper requires skilled technicians who follow a detailed process. The main fuselage serves as the central structure, and the wing and tail sections are assembled separately. The wing assembly involves attaching the main wing structure, ailerons, and flaps, while the tail assembly involves joining stabilizers, a propeller, and a rudder.
Loading weaponry
After the assembly process is completed, the MQ-9 Reaper can be loaded with weaponry to conduct missions. The typical armament includes AGM-114 Hellfire missiles and GBU-12 Paveway 2 bombs. Skilled technicians ensure proper loading and compatibility of the weaponry with the drone.
Preparing for takeoff
Once the MQ-9 Reaper is assembled and loaded with the necessary weaponry, it is towed to the runway by a modified tow truck. The maintenance crew prepares the aircraft for flight, ensuring that it is in optimal condition. Once ready, the pilot at the Ground Control Station is signaled, and the Reaper is cleared for takeoff.
The MQ-9 Reaper in Action
Conducting attack missions
The MQ-9 Reaper is primarily used to conduct attack missions globally. With its advanced capabilities and armament, the Reaper can strike targets with precision and accuracy, providing crucial support to ground forces.
Target identification and launching attacks
To launch a successful missile attack, the MQ-9 Reaper operator must identify the target and position the drone for the perfect firing angle. The sensor operator of the Reaper’s Ground Control Station manages the Multi-Spectral Targeting System, which incorporates various sensors, cameras, and radar to identify and track targets. Once the target is identified, the operator launches the attack, and the missiles take approximately 30 seconds to reach the target.
Stealth capabilities
The MQ-9 Reaper has a reduced radar signature due to its flat profile and design features that minimize its detectability. This stealth capability allows the Reaper to operate undetected during missions, increasing its effectiveness in accomplishing its objectives.
Multi-spectral targeting system
The MQ-9 Reaper is equipped with a Multi-Spectral Targeting System (MTS), which incorporates an infrared sensor, a color and monochrome daylight TV camera, a shortwave infrared camera, a laser distance indicator, a laser target illumination system, and radar. This comprehensive system enables the drone to see ground targets both day and night, providing valuable intelligence for successful missions.
Post-flight inspections
After every mission, the MQ-9 Reaper undergoes a post-flight inspection. Skilled maintenance crews check for any structural flaws or wear and tear, ensuring that every component of the Reaper is operational. Any necessary repairs or replacements are made to ensure the drone’s continuous mission-readiness.
The Role of Operators
Pilot and sensor operator roles
Operating an MQ-9 Reaper requires a pilot and a sensor operator. The pilot is responsible for maneuvering the drone, monitoring the airspace, and using control sticks to navigate the Reaper. The sensor operator manages the Multi-Spectral Targeting System (MTS), manipulating the cameras, lasers, and other systems to identify and track targets.
Control limitations
While the MQ-9 Reaper can be operated remotely from a Ground Control Station (GCS), there are certain limitations to control distance. It takes time for satellite control signals to reach the Reaper, and a delay of even a few seconds can cause issues during takeoff and landing. Therefore, the control is later transferred to the crew stationed near the target location, ensuring real-time control over the drone.
Transfer of control to remote crew
Control of the MQ-9 Reaper can be transferred to remote crews stationed thousands of miles away from the target location. Satellite links enable real-time control, allowing for effective mission execution in various regions around the world. This remote control capability provides flexibility and expands the operational range of the Reaper.
The Future of the MQ-9 Reaper
Introduction of the MQ-9B Sky Guardian
General Atomics recently unveiled the MQ-9B Sky Guardian, an all-new version of the MQ-9 Reaper. Equipped with a high-resolution electro-optical and infrared nose-mounted MTS-B sensor, the MQ-9B is capable of indicating moving targets. Additionally, it features short takeoff and landing capability, enabling it to operate from the deck of an aircraft carrier.
Enhanced capabilities of the MQ-9B
The MQ-9B Sky Guardian boasts enhanced capabilities compared to its predecessors. With improved sensors and a higher payload capacity, it can provide Intelligence, Surveillance, and Reconnaissance (ISR) capabilities for up to 40 hours. The U.S Navy and Marine Corps are expected to have a particular interest in the MQ-9B due to its advanced features and ability to support various operations.
Potential interest from the U.S. Navy and Marine Corps
The advanced capabilities of the MQ-9B Sky Guardian make it well-suited for the needs of the U.S Navy and Marine Corps. Its ISR capabilities, extended endurance, and adaptability in extreme weather conditions make it a valuable asset for both organizations. The future deployment of the MQ-9B in naval operations is highly anticipated.
Endurance and adaptability in extreme weather conditions
The MQ-9 Reaper and its successor, the MQ-9B Sky Guardian, have demonstrated the ability to endure and operate effectively in extreme weather conditions. This endurance makes them suitable for a wide range of missions, including those in cold regions like Antarctica. Their adaptability to harsh environments further enhances their utility on the battlefield.
Conclusion
Combat drones like the MQ-9 Reaper have significantly impacted military operations, providing a unique and effective approach to conducting attack missions and gathering battlefield intelligence. The MQ-9 Reaper’s capabilities, including its size, armament, maintenance requirements, and control systems, make it a formidable asset in the field. Additionally, the future introduction of the MQ-9B Sky Guardian opens up new possibilities and potential applications for combat drones. While it is uncertain whether combat drones will entirely replace manned aircraft, their continued development and integration into military strategies signal their increasing importance in modern warfare.
