In this video titled “Is LiDAR the next Gold? – Drone LiDAR” by Dylan Gorman, you will learn about the use of aerial LiDAR in the drone industry. The video covers various important aspects, such as the origin and evolution of LiDAR, its applications in surveying projects, and the equipment used for capturing and processing LiDAR data. You will also gain insights into the value of LiDAR data for surveyors, mappers, architects, and engineers, as well as its advantages over photogrammetry. The video concludes with additional resources and the creator’s social media handles for further exploration. It’s a comprehensive guide to understanding and utilizing LiDAR in the drone mapping industry.
In the captivating introduction, Dylan Gorman discusses the growing significance of LiDAR in the drone industry. He highlights the affordability, accuracy, and ease of use of LiDAR when combined with drones. By delving into the process of capturing and processing LiDAR data, Gorman showcases its relevance to surveyors, mappers, architects, and engineers. With the rapid growth of LiDAR technology and its potential applications, this video explores whether LiDAR is the next gold in the world of drone mapping.
LiDAR: The Next Gold in the Drone Industry
This image is property of i.ytimg.com.
Introduction to LiDAR and its Evolution in the Drone Industry
LiDAR, which stands for Light Detection and Ranging, has emerged as the new gold standard in the drone mapping industry. Over the years, LiDAR technology has evolved significantly and become a fundamental tool for various surveying projects. Originally introduced in the 1930s as a means to study the atmosphere using flashlights, LiDAR gained prominence in the 1980s when it was combined with lasers and GPS technology. This combination allowed for the collection of highly accurate and usable data.
In the past, LiDAR equipment was bulky, expensive, and accessible only to governments and large companies. These large sensors were mounted on airplanes and required extensive funding and expertise to operate. However, with the advent of drones, LiDAR has become more affordable, portable, and user-friendly. Nowadays, LiDAR sensors can be attached to drones, enabling surveyors, mappers, architects, and engineers to capture accurate data swiftly and cost-effectively.
Applications of LiDAR in Various Surveying Projects
LiDAR has found extensive applications in a wide range of surveying projects. Some of the common applications include:
-
Environmental Issues: LiDAR helps monitor and analyze environmental changes, such as coastal erosion, deforestation, and land degradation. The accurate data captured by LiDAR sensors enables scientists and policymakers to make informed decisions and take necessary actions to mitigate environmental damage.
-
Land Disputes: LiDAR data proves valuable in resolving land-related conflicts, boundary disputes, and property encroachments. The detailed topographic information obtained through LiDAR helps determine accurate property boundaries and assists in resolving legal disputes.
-
Architectural Preservation: LiDAR is extensively used in architectural preservation projects to document and analyze historical structures. The precise measurements obtained by LiDAR sensors aid in the restoration and conservation of historical sites, ensuring that the architectural heritage is preserved.
Advantages of LiDAR Data
LiDAR data offers several advantages over traditional data capture techniques, making it a preferred choice among professionals in the surveying and mapping industry. Some of the key advantages include:
-
Accuracy: LiDAR data provides highly accurate 3D measurements, allowing professionals to create precise models and maps. The centimeter-level accuracy of LiDAR data is crucial for surveyors and mappers who require reliable information for their projects.
-
Efficiency: LiDAR sensors, when mounted on drones, enable rapid data capture over large areas. The efficient data collection process saves time and resources compared to traditional surveying methods, which often involve manual measurements and lengthy fieldwork.
-
Detail and Resolution: LiDAR data provides detailed and highly resolved information about the surveyed area. The point cloud generated by LiDAR sensors captures millions of data points, making it possible to analyze intricate features and variations in terrain.
-
Versatility: LiDAR data can be utilized across various fields and industries, including urban planning, agriculture, infrastructure development, and natural resource management. The versatility of LiDAR data makes it a valuable asset for professionals across different domains.
Equipment Used in the Video

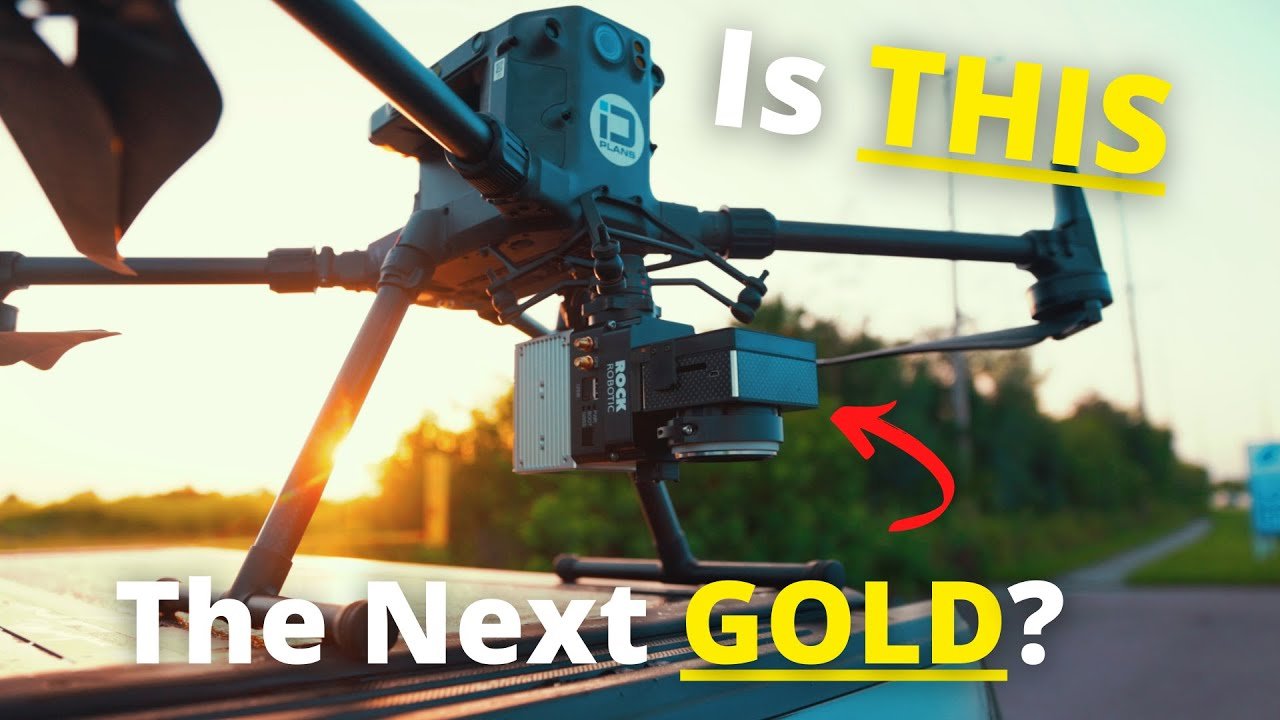

In the video, the equipment used for LiDAR data capture includes the Phoenix LiDAR R2A sensor and the DJI M300 RTK drone. The Phoenix LiDAR R2A sensor, developed by Rock Robotic, is a state-of-the-art LiDAR sensor known for its accuracy and reliability. The DJI M300 RTK drone is equipped with real-time kinematic (RTK) capability, enabling precise positioning and navigation during the flight.
Process of Flight Planning and Data Capture
Before initiating the LiDAR data capture process, proper flight planning is essential. The video emphasizes the importance of setting up ground control points (GCPs) and observation GNSS (Global Navigation Satellite System). GCPs are visual markers placed on the ground to establish a reference point for tying the LiDAR data to real-world coordinates. The observation GNSS, such as the MLed Reach RS2, continuously records the position data during the flight for post-processing purposes.
Once the flight planning is completed and the equipment is set up, the drone takes off to capture LiDAR data. The combination of lasers, GPS technology, and IMU (Inertial Measurement Unit) allows the LiDAR sensor to emit pulses of light while spinning at high speed. The GPS and IMU data synchronize with the lasers’ output, resulting in centimeter-accurate LiDAR data capture.
Ground Control Points and Observation GNSS
Setting up GCPs plays a crucial role in the accuracy of LiDAR data. GCPs act as reference markers on the ground that help tie the LiDAR data to known locations. Surveyors or professionals work with surveyors to determine the placement of GCPs based on the project’s requirements. In the video, the use of aerial tags is demonstrated as a precise and accurate method of marking GCPs.
Observation GNSS, such as the MLed Reach RS2 used in the video, records the drone’s position in real-time during the flight. This continuous recording allows for precise post-processing of the LiDAR data by combining the drone’s position with the captured data points.
Data Processing with Rock Cloud’s Software
After the LiDAR data capture is complete, the next step is data processing. The video showcases the use of Rock Cloud’s proprietary software for aligning and analyzing the captured data. Rock Cloud’s software offers sophisticated tools and algorithms to process LiDAR data efficiently. The software enables professionals to filter, classify, and visualize the point cloud data, turning it into actionable insights for their projects.
Comparison with Photogrammetry
LiDAR data is often compared to photogrammetry, another widely used method for data capture in the drone industry. While both techniques offer valuable data, there are significant differences in their capabilities and outputs.
LiDAR excels in capturing highly accurate 3D measurements, especially in complex terrains and environments. It provides detailed and intricate information about the surveyed area, making it ideal for applications that require precise elevation data or feature extraction. On the other hand, photogrammetry relies on processing imagery captured by drones to create 3D models. While photogrammetry is cost-effective and efficient for many applications, it may not match the level of accuracy and detail provided by LiDAR data.
Growing Importance of LiDAR in the Drone Industry
LiDAR’s importance in the drone industry continues to grow rapidly. Its ability to capture accurate and detailed data in various surveying projects has made it an invaluable tool for professionals. The increasing affordability and accessibility of LiDAR sensors, coupled with the advancements in drone technology, have made it more feasible for individuals and companies to integrate LiDAR into their workflows.
As the demand for accurate mapping, modeling, and analysis increases in various industries, LiDAR is expected to play a crucial role in meeting these requirements. The ability to obtain centimeter-accurate data rapidly and cost-effectively positions LiDAR as a promising technology for the future.
Conclusion
LiDAR has emerged as the new gold in the drone industry, revolutionizing the way mapping and surveying are conducted. Its evolution from a bulky and expensive technology to a compact and affordable solution has paved the way for widespread adoption. The advantages of LiDAR data, including accuracy, efficiency, and versatility, have made it an indispensable tool for professionals in various fields.
The video discussed the equipment used in LiDAR data capture, the process of flight planning, the importance of ground control points and observation GNSS, and the data processing phase. Additionally, it highlighted the growing importance of LiDAR in comparison to photogrammetry and its significance in the drone industry.
LiDAR is undoubtedly shaping the future of surveying, mapping, and data analysis, providing professionals with the necessary tools to make informed decisions and drive innovation. With its potential for further advancements and applications, LiDAR is poised to continue its rise as the industry’s gold standard.
In this video, you will explore aerial LiDAR and discover how it is rapidly becoming the new gold standard in drone mapping. Since its beginnings in the 1980s, LiDAR has made significant advancements and is now an essential tool for various projects, including environmental issues, land disputes, and architectural preservation (metaverse).
